Ajinomoto Build-Up Film® (ABF) HDI Applications

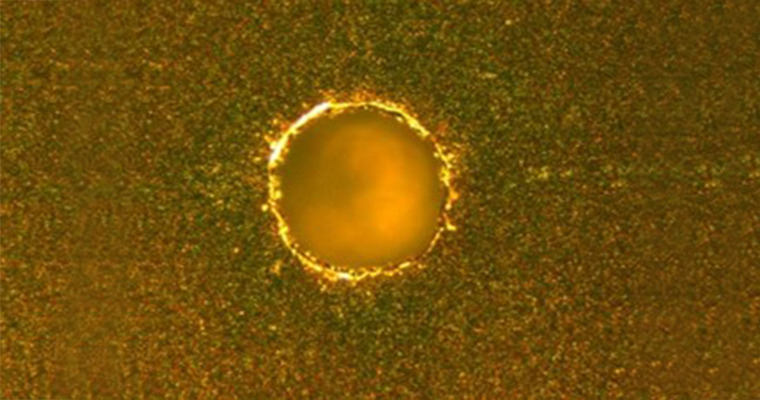

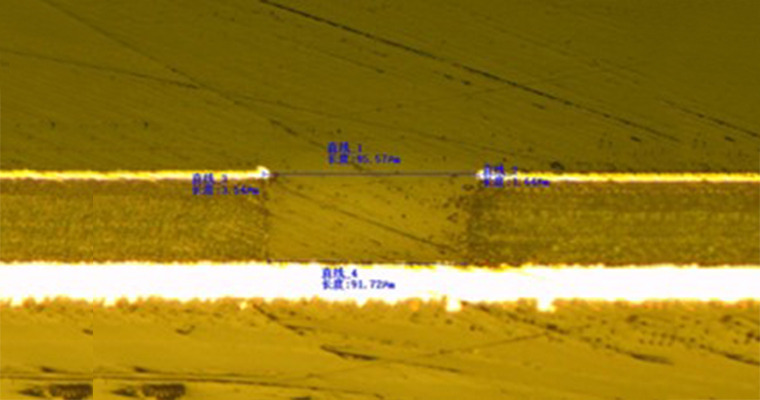

100 μm BVH on 40 µm ABF Example
- System: Geode S
- Stackup: 3/40/18
- Sample size: 35
- OH - μm (µ/σ): 3.3/1.3
- Taper - % (µ/σ): 93.98/3.3

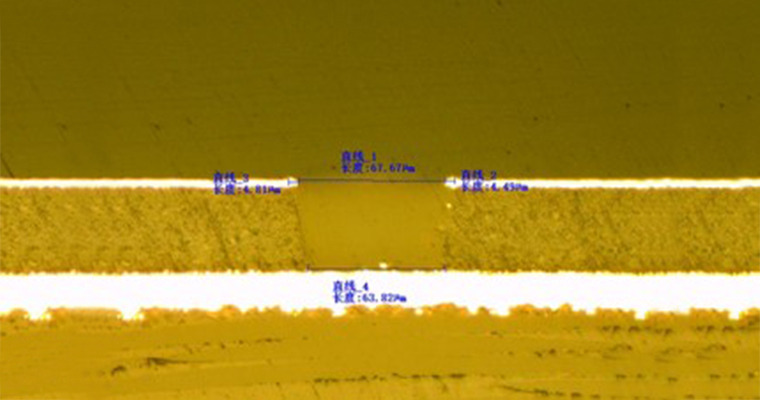

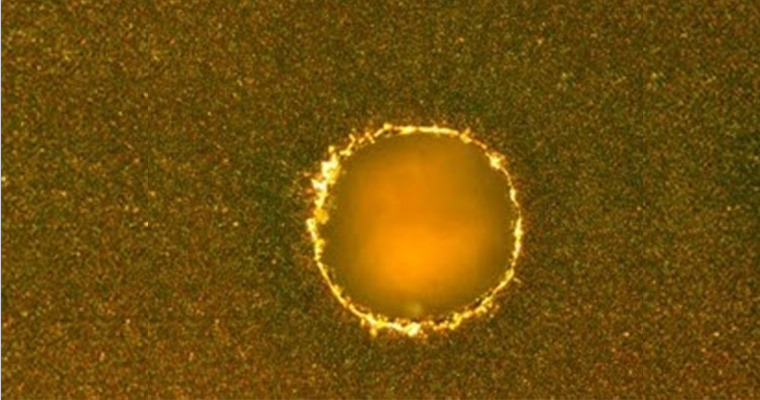

70 µm BVH on 40 µm ABF Example
- System: Geode S
- Stackup: 3/40/18
- Sample size: 25
- OH - μm (µ/σ): 3.7/1.5
- Taper - % (µ/σ): 87.84/4.6

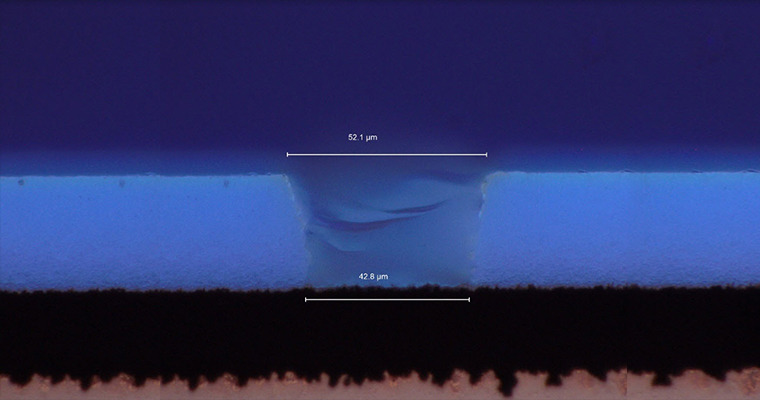

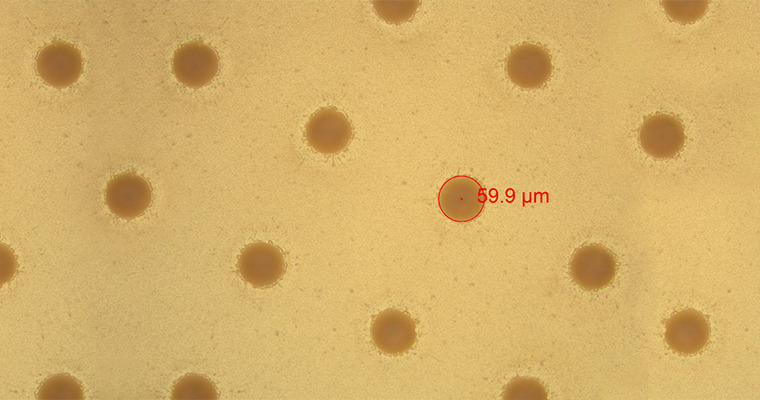

58 µm BVH on 30 µm ABF Example
- System: Geode VS
- Stackup: N/A
- Sample size: 30
- OH - μm (µ/σ): N/A
- Taper - % (µ/σ): 80.1/0.04

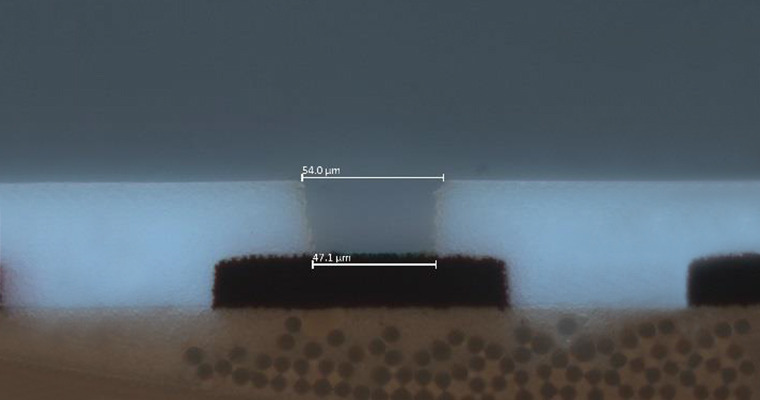

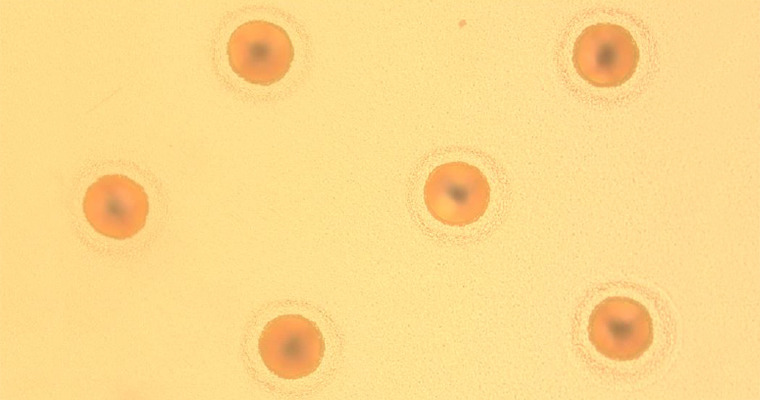

55 µm BVH on 30 µm ABF Example
- System: Geode VS
- Stackup: N/A
- Sample size: 19
- OH - μm (µ/σ): N/A
- Taper - % (µ/σ): 83.6/2.8
